コアレス HS-408-410-412-Q

コアレスDCモータ

代表的な用途:

小型電子製品

ラジコン玩具

飛翔体
可用性ステータス:
数量:
  • コアレスDCモータ

外形図

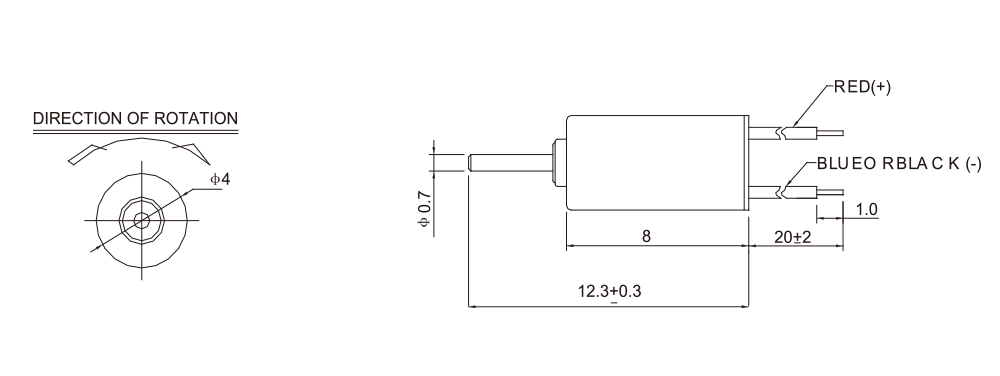

Coreless-DC-Motor_HS-408-Q150-10100

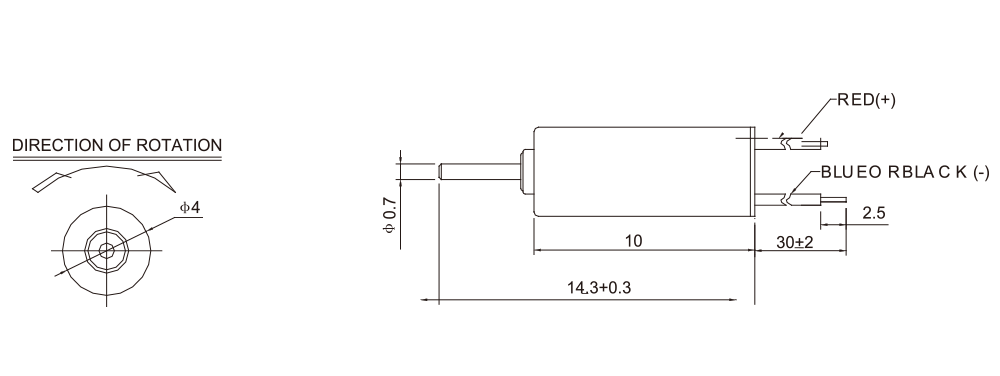

Coreless-DC-Motor_HS-410-Q300-20350-1

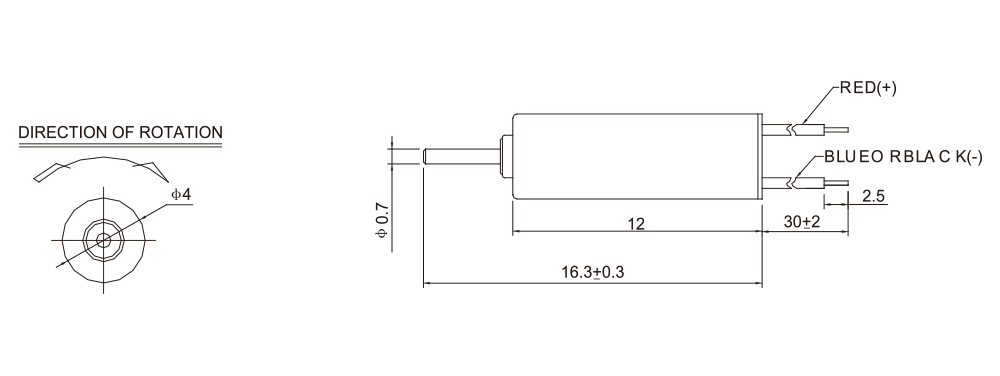

Coreless-DC-Motor_HS-412-Q130-40220-1

仕様

型式 電圧 無負荷回転速度 最高効率点 拘束
MODEL Voltage Noload Speed At maximum efficiency Stall
使用範囲 定格値 回転速度 電流 回転速度 電流 回転モーメント 回転モーメント 電流
Operating

range

Nominal Speed Current Speed Current Torque Torque Current
r/min A r/min A mN.m g.cm mN.m g.cm A
HS-408-Q15040300 1.2-2.0 1.5 30000 0.04 18000 0.08 0.019 0.2 0.05 0.5 0.15
HS-408-Q30020350 2.5-3.5 3 35000 0.02 17000 0.06 0.019 0.2 0.39 0.4 0.09
HS-410-Q13040220 1.0-2.0 1.3 22000 0.037 15400 0.059 0.029 0.3 0.098 1 0.106
HS-410-Q30035375 2.5-3.0 3 37500 0.035 25000 0.053 0.019 0.2 0.176 1.8 0.088
HS-412-Q37040550 2.5-4.5 3.7 55000 0.04 45000 0.15 0.039 0.4 0.21 2.2 0.45

折れ線グラフ

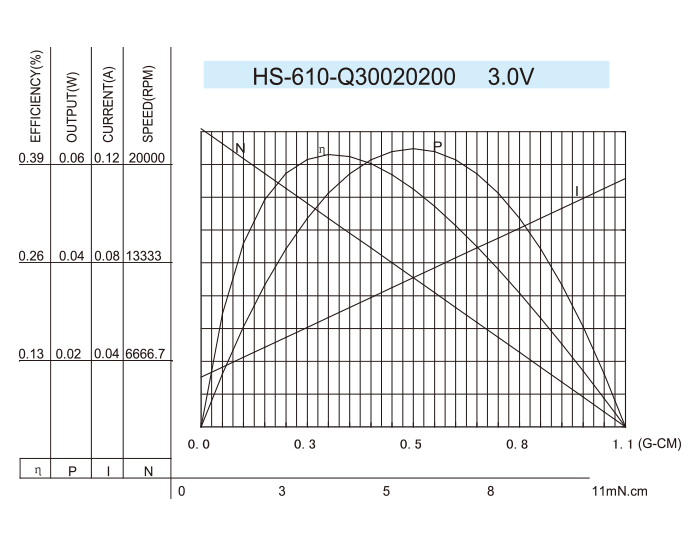

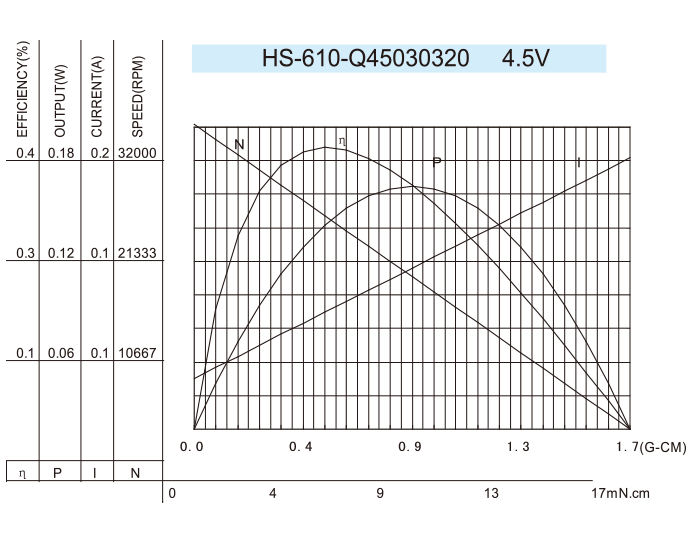

Coreless-DC-Motor_HS-610-Q45030320-4.5VCoreless-DC-Motor_HS-610-Q30020200-3.0V
